SNCR
Selective Non-Catalytic Reduction
The Selective Non-Catalytic Reduction (SNCR) process is integral to reducing nitrogen oxides (NOx) emissions within the temperature range of 850°C – 1150°C. This method involves the injection of an ammonia or urea-based reducing agent directly into the flue gas of an industrial
combustion source.
The primary objective of introducing the reducing agent is to facilitate the reduction of NOx species present in the flue gas. Through a chemical reaction, the reducing agent reacts with the NOx, resulting in the formation of elemental nitrogen (N2) and water vapor (H2O), both environmentally being byproducts.
The efficacy of the SNCR process heavily relies on thorough mixing of the reducing agent within the specified temperature window. Maximizing the duration of interaction between the reagent and the NOx compounds within this temperature range directly correlates with higher levels of NOx reduction. Enhanced mixing ensures a greater opportunity for the reagent to react with NOx species, promoting more efficient conversion into harmless nitrogen and water vapor.
Achieving optimal NOx reduction through the SNCR process is highly dependent on precise injection and thorough mixing of the reducing agent within the targeted temperature window, ultimately leading to more effective emission control in industrial settings.
SNCR systems to meet your plant requirements
Flowvision’s cutting-edge SNCR systems demonstrate the capability to reduce NOx emissions up to 80% in specific applications, all while effectively limiting ammonia slip. Our SNCR systems are designed based on a modular framework, ensuring adaptable solutions to meet diverse plant requirements. Whether providing standardized, cost-effective systems or tailoring designs to adhere to local regulations, standards, and specifications, our approach remains flexible to suit each plant’s unique needs.
A comprehensive turnkey SNCR plant comprises four key sub-systems:

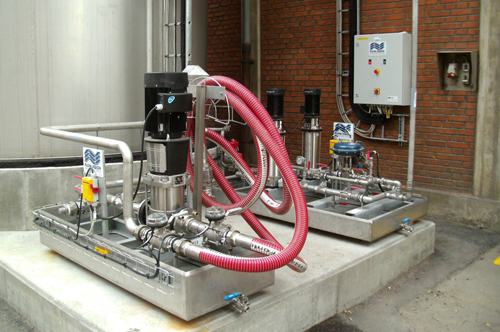

Reagent Solution Handling:
Responsible for receiving, storing, and distributing the reagent solution,
including dilution water if necessary.

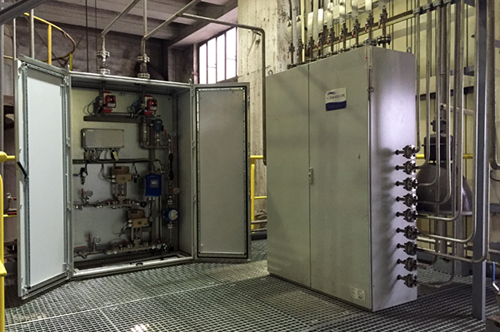

Volume Measurement and Control:
Precise measurement and control systems ensure optimum operational
efficiency.
Injector Surveillance and Maintenance:
Systems dedicated to monitoring and servicing the injectors for optimal
performance.
Flowvision’s SNCR injection technology, have been developed and optimized over the past 25 years of experience. It stands unparalleled in performance, quality, adaptability, maintainability, and cost-effectiveness. Our versatile injectors adapt to varied combustion conditions, offering adjustable spray characteristics and sizes. They feature no moving parts, allowing easy on-site modification for different spray patterns. Quick-coupling maintenance ensures hassle-free disassembly and
reinsertion without readjustment. Custom-designed for specific applications, our injectors deliver diverse spray types, including for extreme environments with optional protection tubes for durability.
